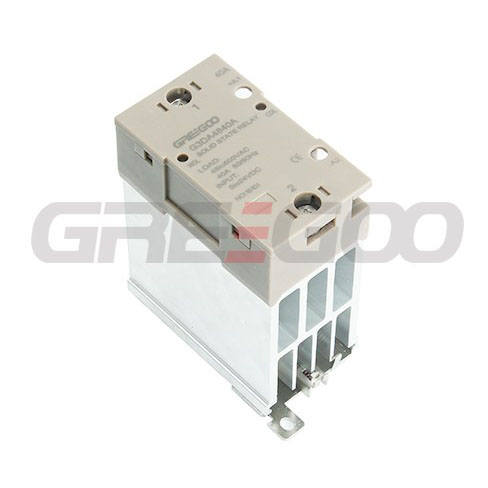

G3DA4840 SSR relays
Relays
Print This Page
In the favorites
E-Mail : info@lvwelec.com
Online consulting：
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
Download- Product Overview
- Product Details
AC SSR (40A) of all-in-one radiator
- Zero-cross type.
- Guide rail installing.
- Rated current 40A.
- Enhanced type.
- RC absorption protection.
- Double LED indicate input & output condition.
- Authentication symbol.
Model G3DA4840 Output SCR Operating Voltage Range (Max. Vrms) 48-600Vac Peak voltage(V peak) 1000Vac Rated operating current (A) 40 Off state maximum leakage (mA) (T=25℃Vmax) 3 Turn-on voltage (V) max, T=25℃ ≤1.2 Static state (off-state) dv/dt(V/us) 500 Frequency range (Hz) 47/63 Input voltage(V) 3.5-24VDC Input parameter 14-18 (automatic limit current) Operate time ≤10ms (0.5cycle) Max Response time (opened) ≤10ms (0.5cycle) Max Operating temperature(℃) -40℃-80℃ Isolation bet in & out(Vrms) ≥2000V Isolation to case(Viso)(Vrms) ≥2000V
