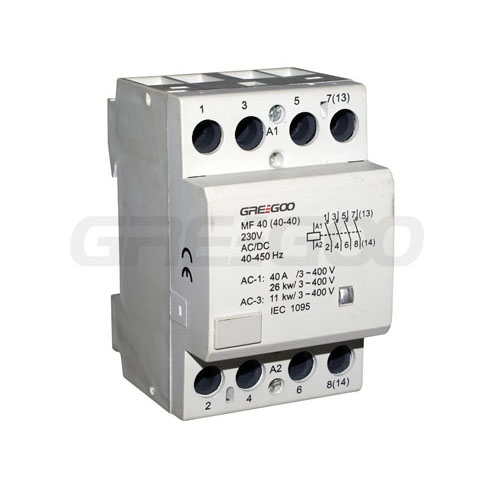

25A40A63A ACDC Modular Contactors
Circuit Breaker
Print This Page
In the favorites
E-Mail : info@lvwelec.com
Online consulting：
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
Download- Product Overview
- Product Details
Model Reference Rated Current Operating Voltage Frequency Module width Poles S-CM252BC MT25 25A 24V DC 50/60Hz 2MW 35mm 2NA S-CM252F MT25 25A 110V AC 50/60Hz 2MW 35mm 2NA S-CM252M MT25 25A 230V AC 50/60Hz 2MW 35mm 2NA S-CM252G MT25 25A 127V AC 50/60Hz 2MW 35mm 2NA S-CM254BC MF25 25A 24V DC 50/60Hz 3MW 55mm 4NA S-CM254F MF25 25A 110V AC 50/60Hz 3MW 55mm 4NA S-CM254M MF25 25A 230V AC 50/60Hz 3MW 55mm 4NA S-CM404BC MF40 40A 24V DC 50/60Hz 3MW 55mm 4NA S-CM404F MF40 40A 110V AC 50/60Hz 3MW 55mm 4NA S-CM404M MF40 40A 230V AC 50/60Hz 3MW 55mm 4NA S-CM634BC MF63 63A 24V DC 50/60Hz 3MW 55mm 4NA S-CM634F MF63 63A 110V AC 50/60Hz 3MW 55mm 4NA S-CM634M MF63 63A 230V AC 50/60Hz 3MW 55mm 4NA
