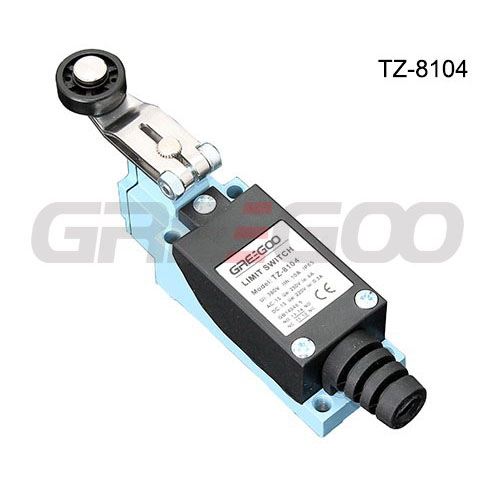

TZ-8 Limit Switches
Switches
Print This Page
In the favorites
E-Mail : info@lvwelec.com
Online consulting：
Add to Inquiry Basket
View Inquiry Basket
The products that you selected had been put into inquiry basket !
Download- Product Overview
- Product Details
Rated voltage Noninductive Load (A) Inductive Load (A) Resistance Load Lamp Load Inductive Load Motor Load NC NO NC NO NC NO NO NC 125VAC 5 5 1.5 0.7 3 3 2 1 250VAC 5 5 1 0.5 3 3 1.5 0.8 8VDC 5 5 3 3 5 4 3 3 14VDC 5 5 3 3 4 4 3 3 30VDC 5 5 3 3 4 4 3 3 125VDC 0.4 0.4 250VDC 0.2 0.2 Inrush Current N.C: below 24A, N.O: below 12A
Models TZ-8104 TZ-8108 TZ-8107 TZ-8111 TZ-8112/8122 TZ-8166/8167/8168/8169 OF(Max.) 750g 750g 750g 900g 900g 150g RF(Min.) 100g 100g 100g 150g 150g - PT(Max.) 20° 20° 20° 1.5mm 1.5mm 30mm OT(Min.) 50° 50° 50° 4mm 4mm - MD(Max.) 12° 12° 12° 1mm 1mm - OP - - - 26±0.8mm 37±0.8mm -
